Seminarweek – day 4 – 27.10.2022

TO DO

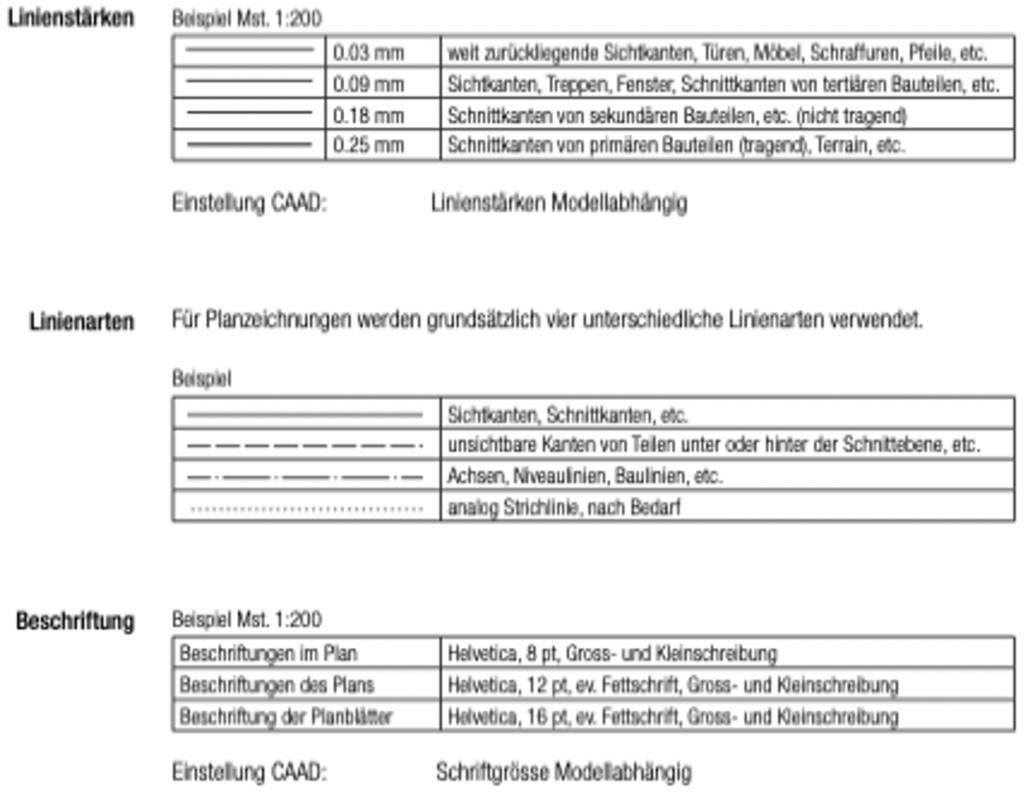

  • Grundriss, Schnitt und Ansicht (3DJony Tuto) – LINIENSTÄRKEN !
  • Don’t forget about Skizzenpapier und Concept App to improve your drawings
  • AR people: meet at 11am at the Macs computers in room G.41

PLEASE NOTE THAT YOU CAN EXPORT YOUR MODEL AS MANY PARTS AND OPENS ALL THE STLs ON THE SAME PRUSA-SLICER PLATTE

POST YOU QUESTIONS ON REDDIT OR DISCORD !

Put you drawing by 16:00 on the Miro-Board to get a feedback !

Zoom recordings of today’s input: recording 1recording 2

  • Grundriss: horizontal cut at 1 metre above the ground
  • Schnitt: cut your project in a place where you can see the quality of the space
  • Ansicht: Schnitt at a distance from the building

PRINTER PROBLEMS

  • look for answers to your printing problems on the Prusa page and ask your colleagues
  • read carefully the enclosed PDF
  • stay close to the printer during the first layer and check back regularly; most problems can be solved at the beginning
  • LIVE-ADJUST Z at the beginning of your print
  • make a printing plan to manage the time

WHAT TO WORK ON

  • Improve the quality of your work with Jonathan’s tips (e.g. Render ≠ ViewCapture, camera height, sun, put a silhouette); see 3DJony’s tutorial
  • Main model: min. 70% 3D printed, it is possible to combine materials
  • Represent your architectural idea through a model, as well as drawings (Grundriss, section, perspective) and a rendering
  • Submission is due on Monday 31st October, 12:00; place your final work on the exhibition tables on floor D
  • SUBMISSION PDF
